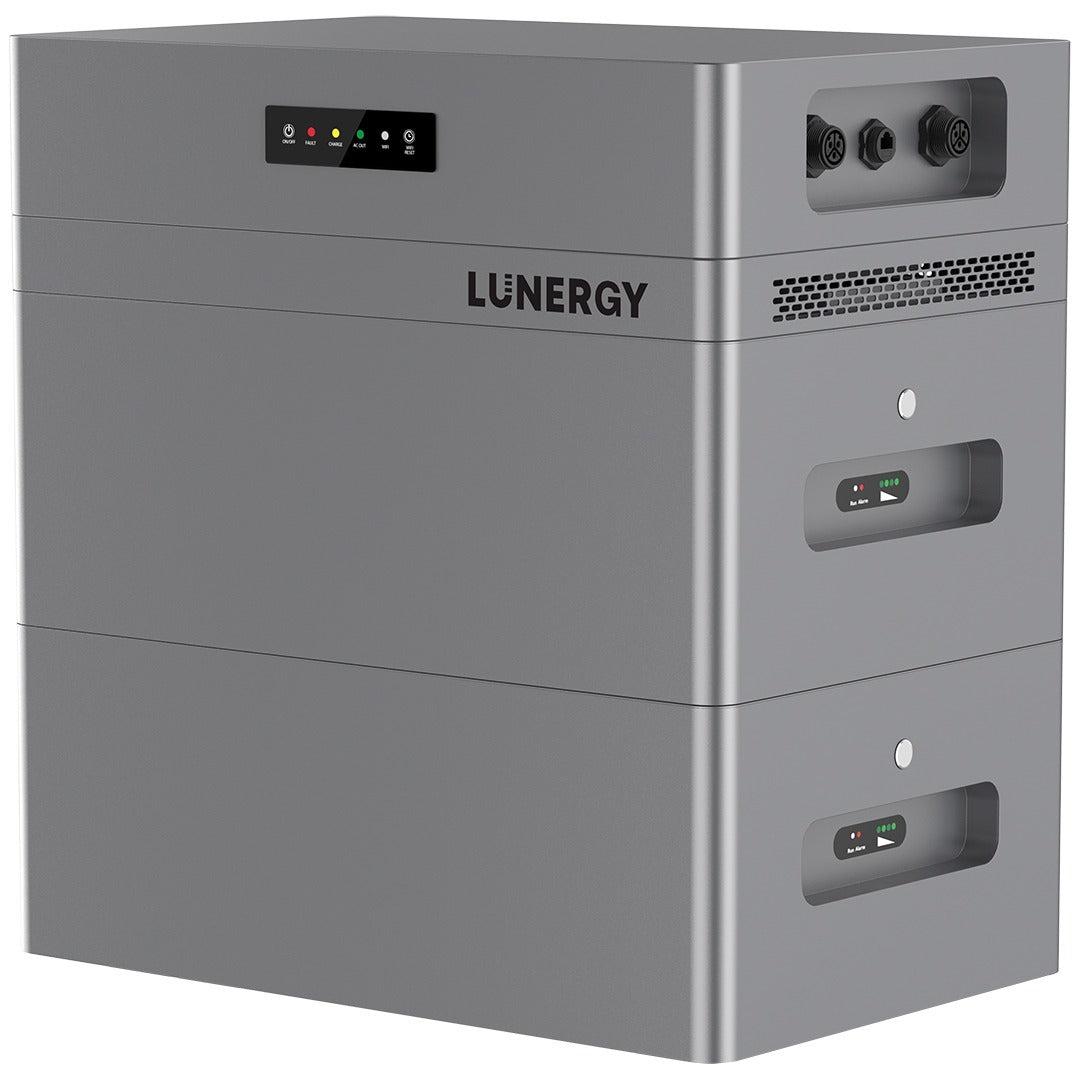

Lunergy Hub 2400 AC + 2 x BP5200 Plug-in Home Battery (10,44 kWh)

This home battery set includes a smart inverter "hub" and two 5.2 kWh batteries; a total capacity of 10.44 kWh. This set can be expanded to a maximum of 3 batteries per inverter for a total capacity of 15.6 kWh. The inverter has a power output of 2,400 W (peak load of 4,800 W) via the integrated socket, sufficient for connecting a washing machine or dryer. The inverter can feed back 800 W via the plug as standard, and as much as 2,400 W if that socket is connected to a completely separate circuit.

To measure the home's energy consumption and prevent automatic feeding back into the grid, an energy meter can be connected. The Lunergy Hub supports the Lunergy P1 meter, but is also compatible with P1 energy meters from Homewizard, Shelly, Tibber, and Home Assistant. Lunergy has also made local communication via the ModBus port available for the true home automation do-it-yourselfer.

In summary

• Battery capacity: 10.44 kWh (5,220 Wh per battery, expandable to 15.6 kWh per inverter Hub)
• Power supply to the grid: 2,400 W (if on own circuit, otherwise 800 W)
• Power from integrated socket: 2,400 W (peak power of 4,800 W)

Specifications

Connections

• AC output: 2,400 W (peak 4,800 W)
• AC ingang: max 2.400 W
• TCP connection: ModBus communication port (RS485)

Inverter details

• Return coefficient (RTE): 86%
• Operating temperature: -20 - +55ºC
• Cooling: active cooling (automatically controlled)
• Sound level: <45 dB
• UPS changeover time: <10 ms

Battery details

• Capacity: 10,440 Wh (10.44 kWh)
• Celtechnologie: LiFePO₄
• Operating temperature -10ºC ~ +50°C
• Stackable

General

• Dimensions: 53 × 36 × 60.4 cm
  • Hub: 53 × 36 × 15,6 cm
  • Batteries: 53 × 36 × 44.8 cm
• Weight: 100 kg
  • Hub: 12,1 kg
  • Batteries: 88.8 kg
• WiFi: Yes
• IP-classificering: IP65
• Warranty: 10 years
